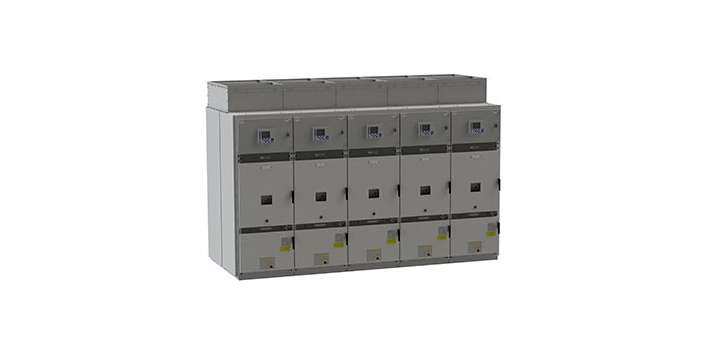

Manufactured Flex RangeUniSafe 2.0 Range
Air-insulated medium-voltage switchgear for primary distribution — fully arc-proof, modular and type-tested to IEC, up to 24 kV, 4000 A and 40 kA.
UniSafe 2.0 is a modular, air-insulated MV switchgear built from standardised units placed side by side, with vacuum or SF6 breakers and vacuum contactors, closed-door racking and internal-arc classification AFLR. Supplied and assembled by PPE Technologies as an ABB value provider.
Built around cost and power qualityArc-proof, modular MV switchgear
UniSafe 2.0 provides a structured approach to medium-voltage distribution, combining proven switchgear engineering with the flexibility required for modern electrical networks. Its system-based design helps create a dependable platform that can be adapted to different project layouts, operating priorities and long-term infrastructure needs.
Fully arc-proof safety
Internal-arc classified (IAC AFLR) with closed-door apparatus racking, safety interlocks and front-only service and maintenance access.
Modular and customisable
Standardised functional units — feeders, bus-ties, risers and measurement — assemble side by side, with vacuum or SF6 breakers, vacuum contactors and fixed or withdrawable CT/VT or sensors.
Type-tested, simple to install
Type-tested to the IEC 62271 series, LSC-2B/PM classified, built from pregalvanized sheet without welding points, and needing only very simple civil works.
Typical project environmentsWhere UniSafe 2.0 can be positioned
UniSafe 2.0 is well suited to projects where medium-voltage distribution needs to balance safety, flexibility and long-term reliability. Its modular platform allows the switchgear arrangement to be adapted to different network layouts and operating environments while maintaining a consistent engineering approach.
Primary distribution
Air-insulated MV switchgear for primary distribution networks.
Utilities & power generation
Incoming, feeder, bus-tie and riser units for substations.
Mining & heavy industry
Robust, arc-proof MV distribution for demanding sites.
Infrastructure & commercial
Modular switchgear line-ups configured per installation.
Technical overviewBuilt for dependable distribution
UniSafe 2.0 provides a well-defined platform for structuring medium-voltage distribution around the needs of the wider electrical network. The technical overview alongside introduces the core engineering areas that shape the switchgear arrangement and support consistent, long-term system performance.
Product category
Air-insulated medium-voltage switchgear for primary distribution
Configuration
Modular free-standing cubicles; 12 / 17.5 / 24 kV; main busbar and feeder up to 4000 A (≤17.5 kV) or 2500 A (24 kV), 50/60 Hz; short-time and internal-arc (IAC AFLR) withstand up to 40 kA; basic cubicle approx. 2160–2600 × 600–1000 × 1550–2300 mm (H×W×D)
Protection & control
Vacuum or SF6 circuit breakers and vacuum contactors; closed-door racking with safety interlocks; traditional CT/VT (fixed or withdrawable) and sensors; IP4X external / IP2X internal (optional IP41/42/43)
Interfaces
Standardised functional units — incoming/outgoing feeder, bus-tie, riser and measurement; front service and maintenance access
Manufacturing
Modular pregalvanized-sheet construction without welding points; type-tested to the IEC 62271 series (62271-1/-100/-102/-106/-200) and IEC 60259; supplied and assembled by PPE Technologies as an ABB value provider
Project support
Design coordination, functional-unit selection, installation support and commissioning
Documentation
Project drawings, test records, operating information and supporting product documents (ABB technical guide 1VCP000555)
Product resourcesExplore the UniSafe 2.0 resources
Supporting information provides a deeper view of the UniSafe 2.0 platform and the engineering principles behind its medium-voltage distribution approach. The resource below offers added context for understanding how the system is structured before moving into detailed project planning and specification.
Read More
Phase identification and rotation
In a three-phase AC installation, phase identification keeps corresponding conductors consistent from one connection point to the next. Phase sequence, sometimes called phase rotation, is the order in which the phase voltages reach their repeating peaks. A phase-sequence instrument indicates the order of the phase voltages.
Clearance and creepage in insulation coordination
Clearance is the shortest distance through air between conductive parts, whereas creepage is the shortest path along an insulating surface between those parts. Insulation coordination considers both distances together with the electrical environment, the material’s surface characteristics, contamination, altitude, and transient overvoltage conditions. Treating clearance and creepage as separate design dimensions helps engineers interpret insulation arrangements without confusing an air path with a surface path.
UniSafe 2.0 Brochure
A focused overview of UniSafe 2.0, highlighting its medium-voltage platform, core capabilities and system approach.
