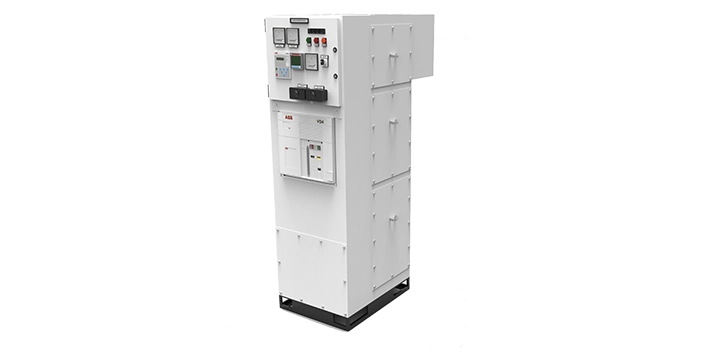

Medium-Voltage Terms in Context

A single busbar is a common conductor arrangement within an assembly, to which the relevant circuits connect. A vacuum circuit breaker interrupts current within a vacuum interrupter. Current transformers and voltage transformers produce measured signals corresponding to current and voltage for functions such as protection, metering, and control.

An IED protection relay is an intelligent electronic apparatus that processes measured electrical quantities and applies configured protection logic. BIL refers to the insulation level associated with an impulse-voltage withstand classification. Short-time withstand describes the ability of an assembly or circuit to withstand a specified current for a defined duration, while peak withstand refers to the maximum instantaneous current associated with that withstand assessment.

Internal-arc classification describes the conditions considered for the behaviour of an assembly during an internal-arc event. IP4X and IP20 are enclosure protection designations: the first characteristic concerns protection against access to solid foreign objects, the second concerns water ingress, and the ‘X’ means that the other characteristic is not specified in that designation.

From Measurement to Supervisory Signals

In a protection-and-control arrangement, current transformers and voltage transformers provide instrument signals derived from the electrical circuit. Those signals can be made available to an IED protection relay for protective functions and to metering functions for observing electrical quantities. The relay and metering functions are distinct even when they use related measured inputs.

Synchronising functions compare relevant electrical conditions before a switching operation is permitted by the applicable control logic. At supervisory level, PLC/SCADA terminology describes the relationship between local control logic and supervisory monitoring, control, and data acquisition. Where IEC 61850 communication is identified, the communication reference concerns the exchange of information between compatible substation automation equipment; the project requirements should define the data, functions, and network arrangement.

Reading a Medium-Voltage Parameter Schedule

A technical schedule separates electrical quantities from physical dimensions. Service voltage is expressed in kV, busbar current in A, and system frequency in Hz. Fault-withstand values are commonly expressed in kA and may be paired with a time in seconds or identified as a peak quantity. These categories describe different aspects of an assembly and should not be treated as interchangeable measures.

A BIL value, expressed in kV, relates to impulse insulation withstand rather than normal operating voltage. Enclosure dimensions written as H×W×D identify height, width, and depth, and are physical envelope information rather than an electrical rating. When reviewing a schedule, the applicable system conditions, connection arrangement, protection requirements, environmental conditions, and interface responsibilities should be defined separately from the values printed in the equipment description.
